Diagram of Liquid Rocket Systems General Arrangement

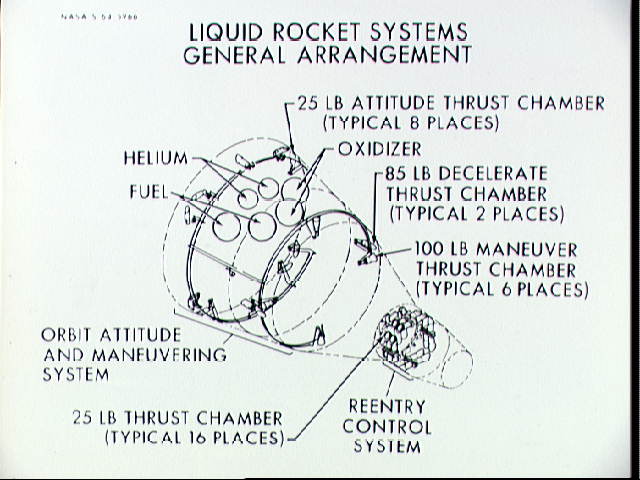

General arrangement of the liquid rocket systems on the Gemini spacecraft are shown. The locations of the 25 pound, 85 pound and 100 pound trusters of the orbital attitude and maneuver system and the 25 pound thrusters of the reentry control system are shown.



Catalog Date: 21 May 1964
Film Type: 4x5 BW
NASA image: S64-05966
